Catalyst XL Compact Ultrasound System

High Resolution 2D/3D Pelvic Floor Imaging

Why Choose the Catalyst Compact Ultrasound

The Catalyst Compact Ultrasound is simply a smaller version of the Catalyst Conventional Ultrasound and is ideal for the office environment or those who are tight on space in exam rooms or storage capacity.

Features all medical grade components and a 15.6” All in One PC integrated onto a sturdy but smaller trolley platform.

Easily customize a system that works for you by choosing from probes in 2D only or 2D/3D.

Modern and innovative software guides clinicians through options at each stage for quick and easy exams. The unique software and user interface is designed for pelvic floor specialists.

Record and replay video files while capturing still images allows for complete capture of patient’s anatomy and provides flexibility in exam sequence.  Capture, save, and replay 60-second video files, transforming the way ultrasound exams are performed and reviewed.

Clinicians can replay videos post-exam and complete interpretation at their convenience. The software is an excellent teaching tool for residency and fellowship programs.

EMR Ready Reports mean no thermal prints! All data, images, measurements, and interpretation are auto-populated onto an exportable, HIPPA-compliant, EMR ready report.  Export options include a repository and direct HL7 Interface.

Halo Catalyst Ultrasound Compact Trolley

Catalyst Compact Trolley Features

  • Designed for office and exam environments and locations that are tight on space or storage capacity.
  • Functional design includes integrated probe holders, a large workspace, and adjustable height.
  • Includes ACE certified adjustable and default HZ/depth control for all conditions and diseases.
  • Medical grade components and a 15.6″ all-in-one PC that is integrated into a compact trolley platform.

EMR Connectivity

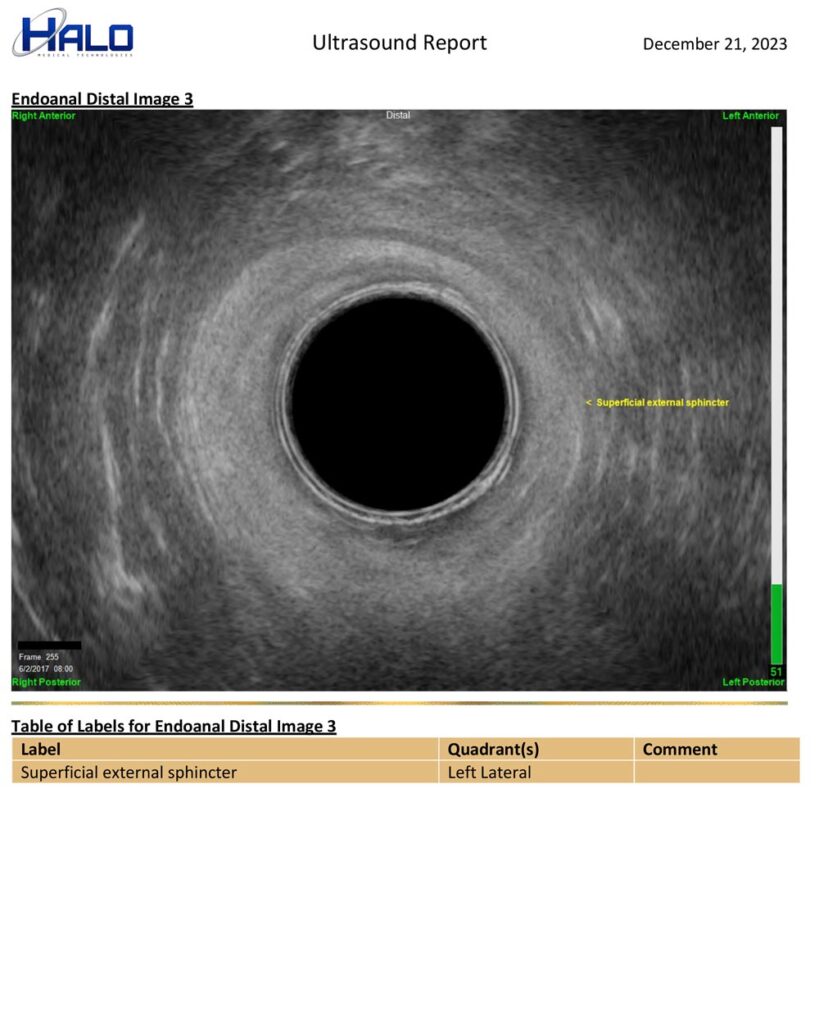

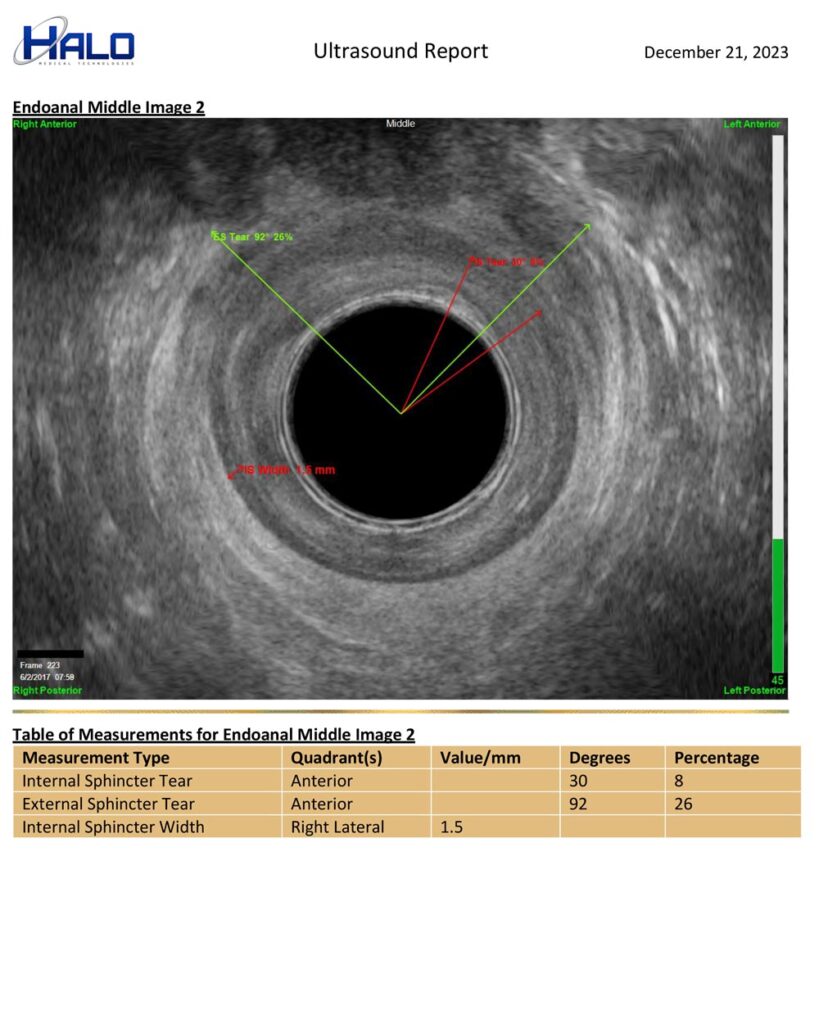

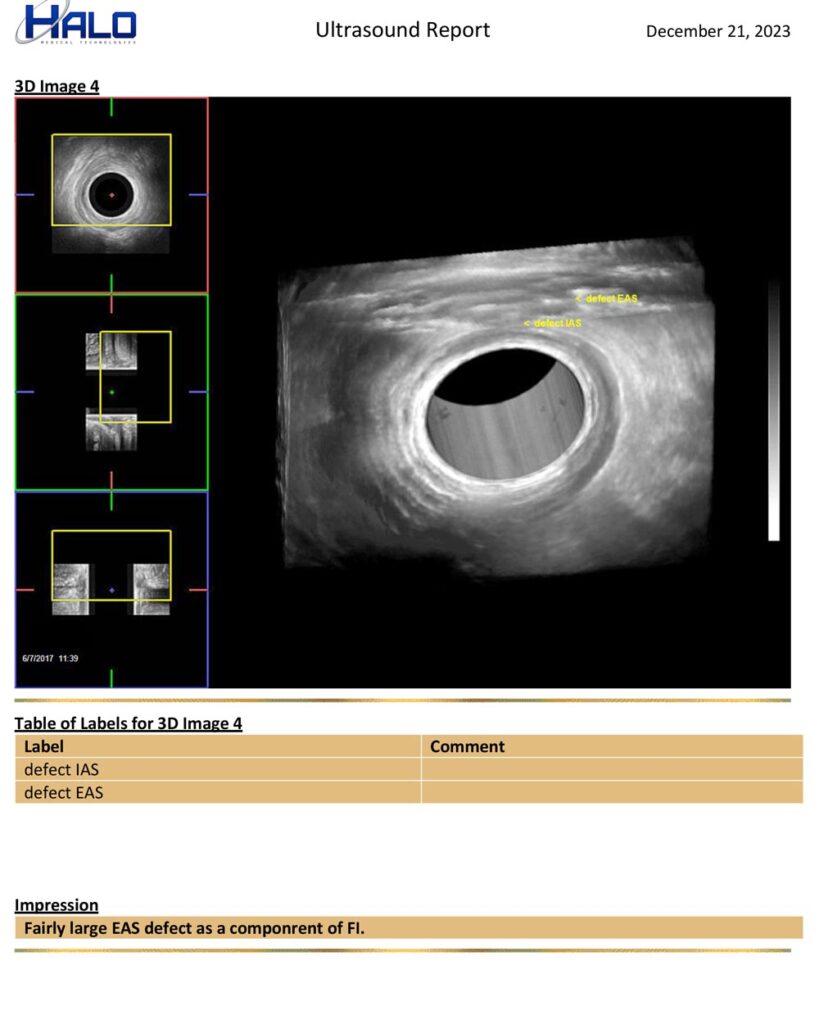

EZ-Reporter Auto-Generated Ultrasound Reports

Perform exams, mark/measure images, & document your interpretation. EZ-Reporter does the rest.

Standard Export Capabilities

No printing or scanning is required. The proprietary software has a pathway for exporting the PDF report to a destination “repository” of your choice.

Once there, the user can move the record to other desired locations, such as the patient’s EMR, to email a referring physician or to other backup locations.

Advanced Export Capabilities – HL7 Interface

Provides direct integration with Electronic Medical Records (EMR) and/or Hospital Information Systems (HIS) using open standards (HL7, FHIR) to automatically deliver reports in real time.

Complete compliance with the latest privacy and information security best practices.

Contact us for technical information.

Ultrasound Products

Halo’s innovative ultrasound systems, probes, and accessories are designed for pelvic floor specialists. Find the right solution for your practice by choosing your specialty and application.

Probes & Accessories

Catalyst XL Compact Ultrasound
System Specifications

Processor (Speed)11th Gen Intel Core i7 Processors w VPro Technology
Memory2 x DDR4 2133/2400 MHz 204-pin SO-DIMM sockets up to 32 GB
Storage1 TB
AIO PC15.6”, Full HD 1920 x 1080, wide viewing angle, Medical Grade, Waterproof, Antimicrobial
AIO MountFully Integrated on Medical Grade Trolley via Vesa Mount
PortsMinimum 4 USB 3.2, (1) USBC, (1) RS232
ConnectivityWi-Fi, Ethernet, Bluetooth
Networking1 x Gigabit LAN Intel i1219LM, 1 x Gigabit LAN Realtek RTL8111G
WirelessIntel Tri Band WiFi 6E 802.11 AC = Bluetooth 5.2
SecurityWPA2, FIPS compliant
Product SafetyUL62368, 60601, RoHs, WEEE, Energy Star, FCC Class B, CE
Power SupplyMedical Grade Power Supply w Universal Input
UsabilityIntegrated Probe Holders, Foldable Keyboard and Mouse, Adjustable Height for Sitting & Stand, Neat Cabling for Power Supply & Cord, and Ergonomic Handle for Easy Transport
Total Weight60 lbs
Operating SystemWindows 10 Professional
Pre-installed SoftwareCatalyst XL system application, MS Office Business, Adobe Reader, VLC Media Player, LogMein (for remote support)
Pre-installed SupportCatalyst system clinical education program video, Catalyst XL system user manual, HALO probes Instructions for Use (IFU).
